Cross Cut Adhesion Test Basic Cutter
PRODUCT DESCRIPTION
The TQC Cross Cut Adhesion Test Basic Cutter is used to test the adhesion of dry coats of paint on their substrate by means of a series of cuts through the coating. Two series of parallel cuts cross angled to each other to obtain a pattern of 25 or 100 similar squares. The ruled area is evaluated by using a table chart after a short treatment with a stiff brush, or adhesive tape for hard substrates.
The cutting knife of the TQC Cross Cut Adhesion Test Basic Cutter is easy to exchange without the use of extra tools. The self positioning knife bracket of the TQC Cross Cut Adhesion Test Basic Cutter ensures equal pressure on the cutting knife.
Each TQC Cross Cut Adhesion Test Basic Cutter contains a grip with cutter.
| Material | Aluminium, Rubber, Stainless Steel |
|---|---|
| Dimensions | 32x1173x42 mm / 1.26×6.81×1.65 inch |
| Mass | 238 g / 8.4 oz |
Documents (EN) : Datasheet
Looking for the Adhesion devices.
Trailing edge
With trailing edge acc. ISO 2409.

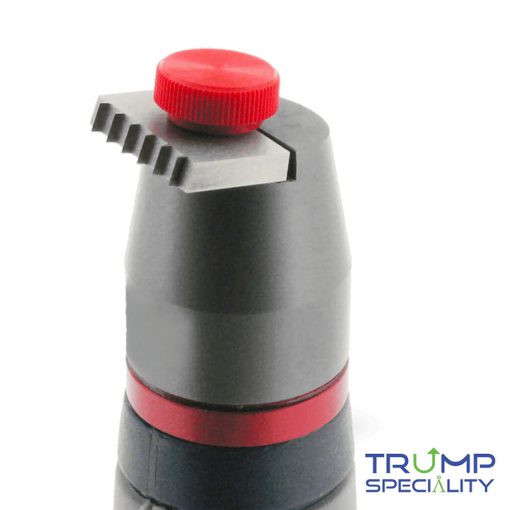

Easy to change cutting knife
Easy to change cutting knife, no extra key needed.
Self-adjusting knife-holder
Self-adjusting knife-holder ensures equal pressure on the cutting knife

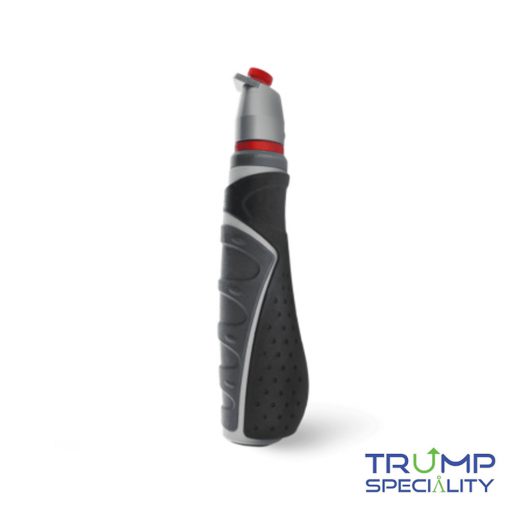

Ergonomically
Ergonomically shaped handle.
Houses
[] It is possible to determine if the current coating of a property needs to be completely removed or can be painted over by using the Criss Cut Adhesion Test.
[] By testing the attachment of paint on children’s toys, the toy can be provided with colorful coatings without crumbling when using.
[] Make sure that nail polish is resistant to daily use and prevent crumbling by testing the adhesion.
[] Obviously, it is very important that paint doesn’t end up in food. Test the adhesion of paint on kitchen equipment to prevent this.
Customer Service
Free Installation & Training for order amount much than 10,000 THB
DELIVERY SCHEDULE
Differentiate for each goods. Please contact us for information.
1-YEAR OF WARRANTY
For Electric Tester.
| น้ำหนัก | 2.38 กก. |
|---|---|
| ขนาด | 4.2 × 3.2 × 11.73 เซนติเมตร |
| Standards | ASTM D3359, ISO 2409, ГОСТ 15140 |
| Series | 6 blades, cutting distance 1 mm, 6 blades, cutting distance 2 mm, 6 blades, cutting distance 3 mm, 11 blades, cutting distance 1 mm, 11 blades, cutting distance 1.5 mm |
