Printing Proofer
AYDJ Printing Proofer (for Gravure Ink) :
AYDJ Printing Proofer (for Gravure Ink) is ideal for providing quick、highly accurate and repeatable samples of gravure inks under lab condition. It may be used for proofing sample、checking printability and R&D for ink products. The machine adopts engraved printing plates direct printing method. Any flexible substrate including films、paper, etc can be printed or laminated, featuring easy operation.
RYDJ Printing Proofer (for flexo):
Used for providing quick、highly accurate and repeatable samples of flexographic ink and water based inks. Adopt solvent resistant impression roller to simulate actual printing method. Any flexible substrate including films、paper, etc can be printed or laminated. Different version engraved printing plate can be selected
Main Technical Parameters:
AYDJ Printing Proofer (for Gravure Ink):
1. Electrical Power Source: 220V 50Hz
2. Printing Speed:20 30 40 45m/min
3. Printing Range:95×149mm
4. Printing Plate: 150 lines/inch (A、B、C、D version can be selected)
5. Specimen Page:120×240mm(Recommended)
6. Overall dimensions: 500×400×350mm (length by width by height)
7. Weight: 26kg

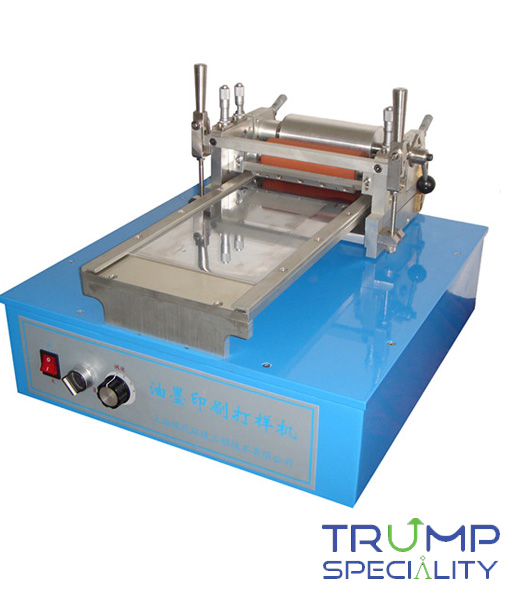

AYDJ Printing Proofer (for Gravure Ink)
RYDJ Printing Proofer (for flexo):
1. Motor Power: 120W
2. Specification of impression roller/hardness: Ф50×130mm/ShoreA 50
3. Specification of metallic roller: Ф60×130mm
4. Printing Speed: 20 30 40 45m/min
5. Printing length: 150mm
6. Electrical Power Source:220V 50Hz
7. Overall dimensions: 500×425×350mm
8. Weight: 27kg

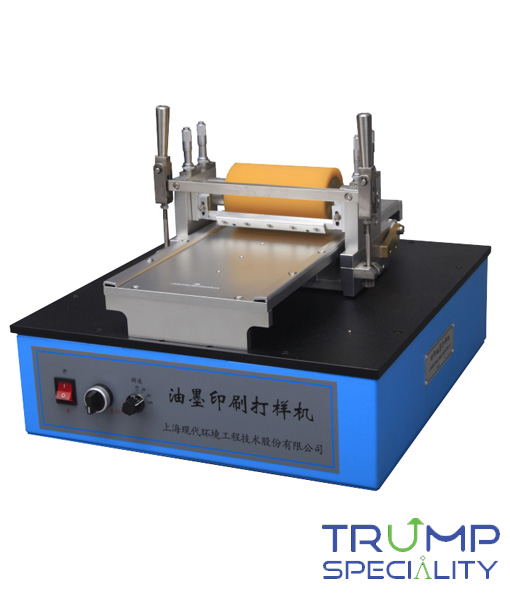

RYDJ Printing Proofer (for flexo)
Ordering Information:
| Type | Name |
| AYDJ | Printing Proofer (for Gravure Ink) |
| RYDJ | Printing Proofer (for flexo) |
