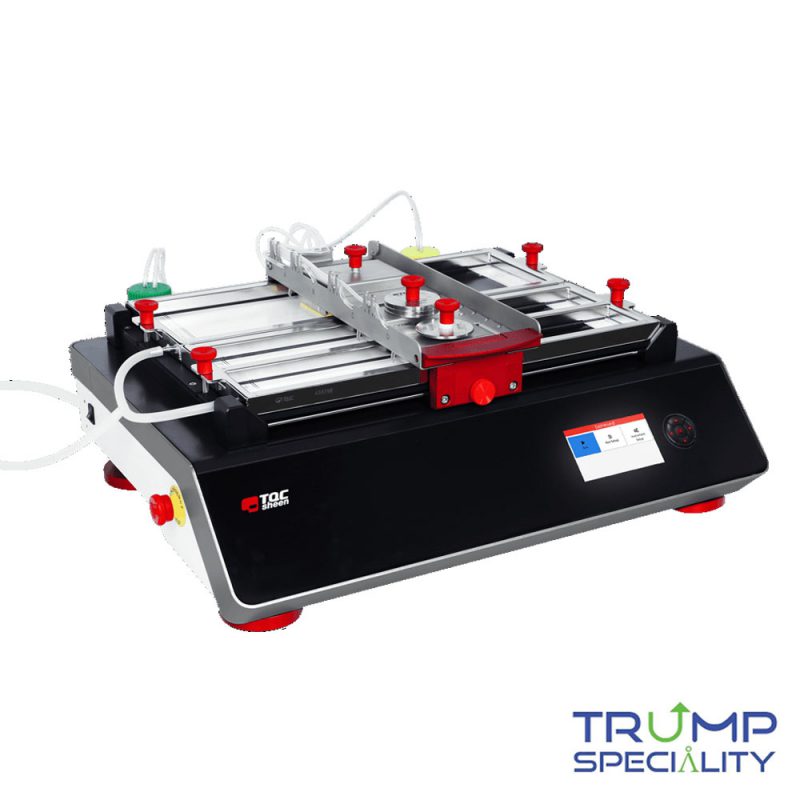

Scrub Abrasion and Washability Tester
PRODUCT DESCRIPTION
The Scrub Abrasion and Washability Tester is used to test the resistance of paint, varnish or coatings to scratching, wearing, and color loss due to wet or dry abrasion, by simulating everyday wear from cleaning actions or general use. The test is either used as a “pass or fail” test by testing to a specified number of strokes or defining the minimum number of strokes at which a coating fails by checking at regular intervals. The Scrub Abrasion and Washability Tester is suitable for a wide range of scrub, abrasion and washability tests that are in use. The modular system significantly decreases the costs for laboratories to comply to many standards.
| Traverse Speed | 1 – 60 cycles per minute |
|---|---|
| Traverse Speed Accuracy | +/- 1% of set speed |
| Stroke length | 20 – 300 mm / 0.39 – 11.81 in |
| Stroke Length Accuracy | +/- 0.01 mm |
| Pump Flow Rate | 0.0 – 3.0 ml per minute / 0.0 – 0.79 GPH |
| Max. Panel Length | 350 mm / 13.78 in |
| Max. Panel Width | 70 mm / 2.76 in |
| Max. panel thickness | 35 mm / 1.38 in |
| Dimensions | 490x640x235 mm / 19.3×25.2×9.24 in |
| Height with pumps | 530 mm / 20.87 in |
| Mass | 33 kg |
| Power | 100 – 240VAC / 50 – 60Hz |
| Power Consumption | Max. 50 Watt |
| Display | 480 x 272 pixel TFT panel |
| Controls | 5-key Navigation Switch, Mouse and Keyboard Optional |
INSTRUMENT CONTROLS AND FUNCTIONS
Documents (EN) : Datasheet
Looking for the Abrasion devices.
Triple i Control
Easy intuitive operating interface with Triple i Control (Intelligent Illumination Interface).
Display
Full color display.
Accessories
Compatible with a large range of accessories.
Preset
Compatible with a large range of accessories.
Software
Easy to update software.
Movement
amet, consectetuer adipiscing elit, sed diam nonummy nibh euismod tincidunt ut laoreet dolore magna aliquam erat volutpat.
Abrasive
[Scrub] Test How Fast a surface is fully sanded with the scrub abrasion and washability tester.
Coating
[Scratch Resistance] The Scrub Abrasion and Washability Tester will be found in the coating industry to test the scratch resistance of, among othesrs, wall paints and varnishes
Carpet
[Wear] Test the wear of floor coverings. Floor coverings of good quality last for a minimum of ten years.
Detergents
[Remove Stains] Test how to remove stains with various detergents.
Phone Screens
[Scratches] Test the scratch resistance of phone screens to prevent damage.
Kitchen counters
[Scratch Resistance] Test the scratch resistance of counter tops with the Scrub Abrasion and Washability Tester.
Seat Covers
[Wear] test the wear of seat covers. For example in cars or aircrafts.
Customer Service
Free Installation & Training for order amount much than 10,000 THB
DELIVERY SCHEDULE
Differentiate for each goods. Please contact us for information.
1-YEAR OF WARRANTY
For Electric Tester.
| น้ำหนัก | 33 กก. |
|---|---|
| ขนาด | 49 × 64 × 23.5 เซนติเมตร |
| Standards | ASTM D2486, ASTM D3450, ASTM D4213, ASTM D4828, ASTM F1319, ISO 11998 |
| Series | TQC Scrub Abrasion and Washability Tester, TQC Scrub Abrasion and Washability Tester-Basic |
