Automatic Rotating Mixer/Shaker

Automatic Rotating Mixer/Shaker

HT-30A Automatic Rotating Mixer:
Applicable range: 0.5L-20L(paint in drum)
Height in the drum: 7cm to 43cm
Diameter of the drum: 7cm to 38cm
Revolution speed :60-200r/min
Rotation speed: 60-200r/min
Power supply: 750W
Net weight: 180kg        Gross weight: 210kg
Case size: 950(H x 820(W) x 750(D)
Packing size: 1250(H) x 920(W) x 850(D)
Container loading: 14sets/20` 28sets/40`GP 32sets/40`HQ
20’container can load 14 sets of mixers and 16 sets of dispensers
40’container can load 28 sets of mixers and 29 sets of dispensers

HT-30C Automatic Clamping Paint Shaker:
Case size: 1200×740×710mm
Net weight: 210kg, gross weight: 245kg
Can size: 360×360×450mm
Can compress-board readjust range: 80-410mm
Applicable range: 1-35kg
Pressure: 3500N
Power: 750w
Speed: 1400r/min
Shaking frequency: 680~710t/min
Power supply: 220V±10%, 50HZ, 10A

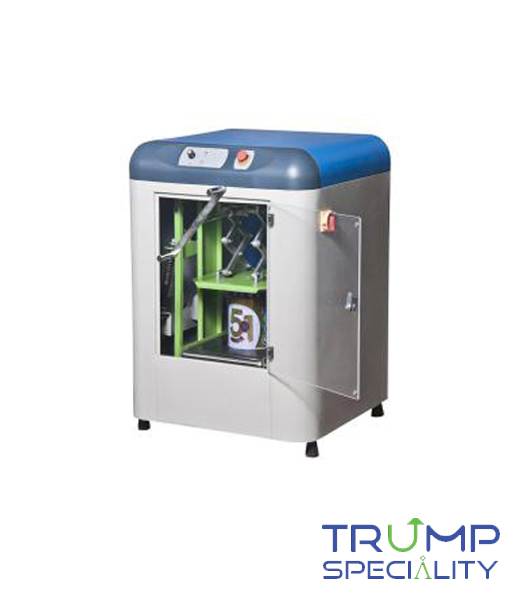

HT-40A Manual Clamping Paint Shaker:
Applicable range: 0.5L-20L (paint in drum)
Applicable height of drum range: 80mm-410mm
Shaking frequency: 710t/min
Working power: 220v   50HZ   Power supply: 0.75kw
Net weight: 195kg      Gross weight: 240kg
Case size: 1100(H) x 820(W) x 900(D)
Packing size: 1290(H) x 860(W) x 980(D)
Container loading: 12sets/20’28sets/40’PG 32sets/40’HQ
20’container can load 14 sets of shakers and 11sets of dispensers
40’container can load 28 sets of shakers and 28 sets of dispensers

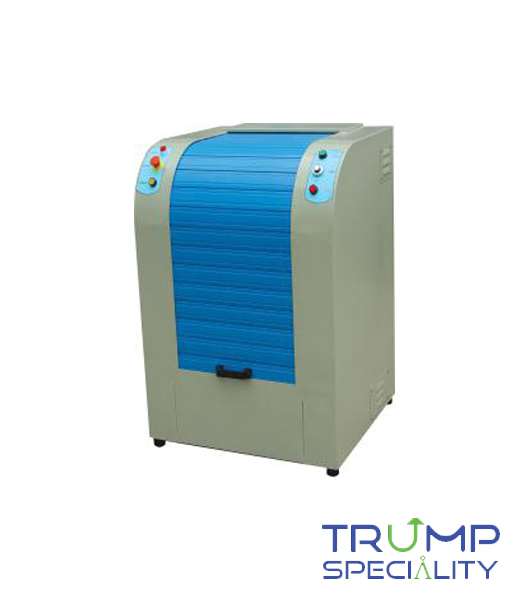

HT-40C Manual Rotating Mixer:
Applicable range: 0.5-20L (paint in drum)
Height in the drum: 7-43cm, diameter of the drum: 7-38cm
Revolution speed: 130r/min
Rotation speed: 260r/min
Power supply: 750W
Net weight: 200kg
Gross weight: 240kg
Time set: 0-15min
Case size: 1050 (H)×800(W)×750(D)mm
Packing size: 1150(H)×900(W)×850(D)mm

Features:

HT-30A Automatic Rotating Mixer:
Start self-checking program automatically before operation. In case of any abnormality, the controller will activate alarm through digital display and buzzer will sound.
Digital display will show the actual time set and time used, so that the operators may have exact mixing time idea for better result.

HT-30C Automatic Clamping Paint Shaker:
Compose with main vibrator, container press cover and microcomputer controller and so on, is suitable to 1-20L all kinds of can/barrel, max load weight is 35kg.
With PLC microcomputer control—can choose and readjust the shaking time freely, with long use life span.
Automatic clamp and bring different pressure to bear on the can according to the can size, will not squish or stave the can.
High speed and thoroughly mixing—with up and down, front and back continuous multi-shake movement.

HT-40A Manual Clamping Paint Shaker:
High-speed thorough action—mixes most paints in at most 30 seconds will accept 0.5L-20L cases.
Fully enclosed for silent operation ad added safety.
Large door with front roller for easy can load.
Safety interlock — prevents the cabinet door from being opened while the machine is running.
Accommodates all can shapes and sizes from 0.5L-20L.

HT-40C Manual Rotating Mixer:
Easy moving or fixing of interior case support, save you time and power.
Revolution and rotation may start synchronously during paint mixing.
The revolution and rotation speed is controlled perfectly to make sure the machine will work steadily.
The machine will stop immedietly when open its door, safe and reliable.
With aluminium hand sliding door.
