Cross Cut Adhesion Test Kit CC1000
PRODUCT DESCRIPTION
The TQC Cross Cut Adhesion Test KIT CC1000 is used to test the adhesion of dry coats of paint on their substrate by means of a series of cuts through the coating. Two series of parallel cuts cross angled to each other to obtain a pattern of 25 or 100 similar squares. The ruled area is evaluated by using a table chart after a short treatment with a stiff brush, or adhesive tape for hard substrates.
The round cutting knife of the TQC Cross Cut Adhesion Test KIT CC1000 has eight cutting edges that can be changed easily by rotating the knife. The self positioning knife bracket of the TQC Cross Cut Adhesion Test KIT CC1000) ensures equal pressure on the cutting knife.

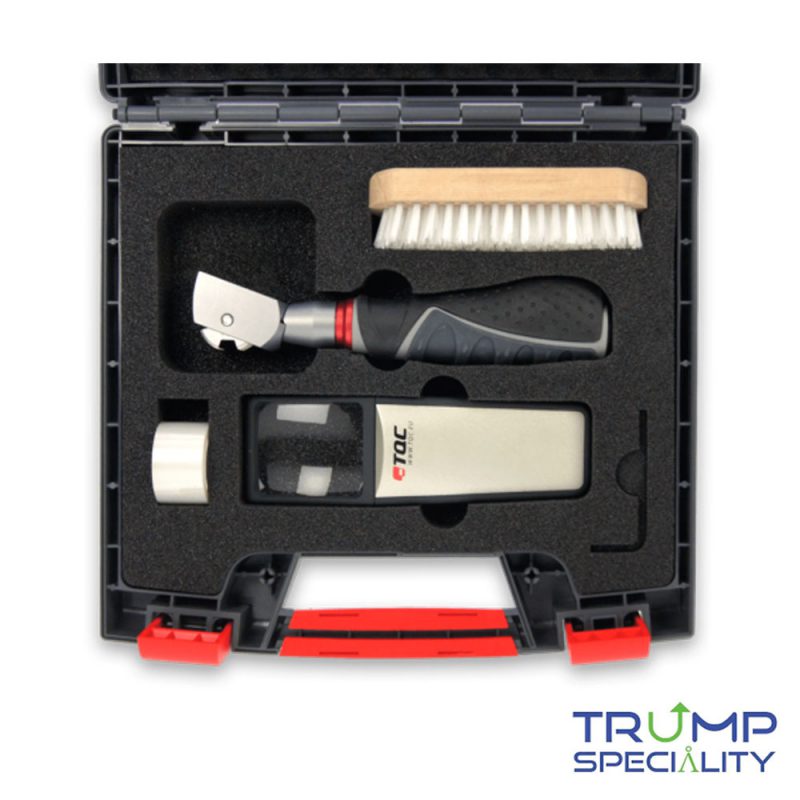

Each TQC Cross Cut Adhesion Test KIT CC1000 contains a grip with cutter, a brush, an illuminated loupe and a roll of adhesive tape acc. EN ISO 2409.
Knives and tape can be ordered as a spare as well
| Material | Aluminium, Rubber, Vacuum Hardened Stainless Steel |
|---|---|
| Dimensions | 19x52x155 mm / 0.75×2.05×6.1 inch |
| Mass | 331 g / 11.68 oz |
Documents (EN) : Datasheet
Looking for the Adhesion devices.
Self-adjusting knife-holder
Self-adjusting knife-holder ensures equal pressure on the cutting knife.
Round cutting knife
Round cutting knife with eight cutting edges for a longer lifetime.
Wide range of knife
Extensive range of knives for different layer thicknesses and surfaces and according to different standards.
Ergonomically
Ergonomically shaped handle
Easy to change knife
Easily replace the knife for a different cutter
Houses
[] It is possible to determine if the current coating of a property needs to be completely removed or can be painted over by using the Criss Cut Adhesion Test.
[] By testing the attachment of paint on children’s toys, the toy can be provided with colorful coatings without crumbling when using.
[] Make sure that nail polish is resistant to daily use and prevent crumbling by testing the adhesion.
[] Obviously, it is very important that paint doesn’t end up in food. Test the adhesion of paint on kitchen equipment to prevent this.
Customer Service
Free Installation & Training for order amount much than 10,000 THB
DELIVERY SCHEDULE
Differentiate for each goods. Please contact us for information.
1-YEAR OF WARRANTY
For Electric Tester.
| Standards | ASTM D3359, ISO 2409, ГОСТ 15140 |
|---|---|
| Series | 6 blades, cutting distance 1 mm, 6 blades, cutting distance 2 mm, 6 blades, cutting distance 3 mm, 11 blades, cutting distance 1 mm, 11 blades, cutting distance 1.5 mm |
