Gloss Meters – Sologloss & Polygloss
PRODUCT DESCRIPTION
The TQC Sheen Glossmeter comes in two models. The Sologloss glossmeter measures 60° and the Polygloss glossmeter 20°/60°/85°. The 60º measuring angle can be used for any surface, from matte to glossy. For better gloss measurements on high gloss surfaces the 20° angle is available, while for low gloss surfaces the 85° angle suits best.
Ideal Finish Analysis Software is included to analyze the gloss measurement results. This software provides the user the power to do all analysis of interest. Trend, Gaus and many other statistical evaluations are possible.
Precision-engineering
In order to get the best stability the TQC Gloss meter’s unique double hybrid frame system has been engineered with the highest precision. Carefully controlling the interior of the light patch helps to give the TQC Gloss meter robust and stable structure. The TQC Sheen Gloss meter is a solid well-engineered Dutch product.
Quality guaranteed
To assess the quality of the Glossmeter TQC Sheen took thousands of readings on certified substrates to test stability, reliability and durability. With or without shock testing the Glossmeter proved to have the ultimate level of performance.
Features:
- Memory for 2000 gloss readings (max 8 batches)
- Adjustable gloss limits with visual and acoustic alarm.
- LCD colourdisplay with wide viewing angle
- Menu-driven interface.
- Stable LED-light source.
- USB-C port for quick data transfer to PC.
- Calibration gloss standard integrated in protective holder .
Documents (EN) : Datasheet
Looking for the Color/Glosss devices.
Data logging
All TQC Sheen Gloss meters are equipped with an extensive memory of max. 2000 measurements which can be organised in 8 different batches. The name of each batch can be programmed into the instrument in order to allow data retrieval at a later stage.
Date Time stamp
The internal clock and calendar provides each stored measurement of a date/time stamp. A choice of four different date formats is available.
Data handling
Via a “plug and play” USB interface the measuring data can be downloaded to your PC. Scrolling through a batch with the Up and Down function shows individual data directly on the instrument’s display. It is possible to delete individual false measurements directly from the instruments database. Batches can be cleared one by one or the entire memory can be emptied in one action. See also the section Ideal Finish Analysis Software
Statistics
Of each batch statistical data can be observed on the Gloss meter’s display. The instrument shows minimum- and maximum values, average and standard deviation.
Limits / Thresholds. When measurements has to meet certain specifications, it is possible to set High and Low limits. An audible and visual alarm indicates when measurements are out off limits operating as a pass/fail option. Depending of the type of TQC Gloss meter individual limits can be set for each measuring angle.
Mechanics
Optical stability. The optical components are mounted on an extreme stable chassis made from a combination of precision milled aircraft-grade aluminium and a special injection moulded hi-tech plastic. The rock solid base assures measurements to be accurate under all circumstances and conditions.
Light Source
TQC Sheen Gloss meters utilise LED (Light Emitting Diode) as light source to guarantee long term stability. Unlike tungsten light bulbs LED does not generate heat. Drifting measurements caused by temperature changes are therefore eliminated. Accuracy remains optimal for many years and lamp replacements are no longer required.
Research
1
Glossmeter development started with an understanding of the basic prinicples of Gloss. Surface textures, translucency and colour all influence the visual perception of a surface, but also influence the fine optics of the gloss meter. Micro scale surface deformations cause scattering of light and divide it into specular and non-specular, this is the fine threshold where the Gloss meter is able to determine the gloss at the highest accuracy level
2
In order to get the best stability the Glossmeter’s unique double frame system has been engineered with the highest precision. Carefully controlling the interior of the light patch helps to give the Gloss meter robust and stabile structure.
3
To assess the quality of the Glossmeter we took ten thousands of readings on certified substrates to test stability, reliability and durability. With or without shock testing the Gloss meter proved to have the ultimate level of performance.

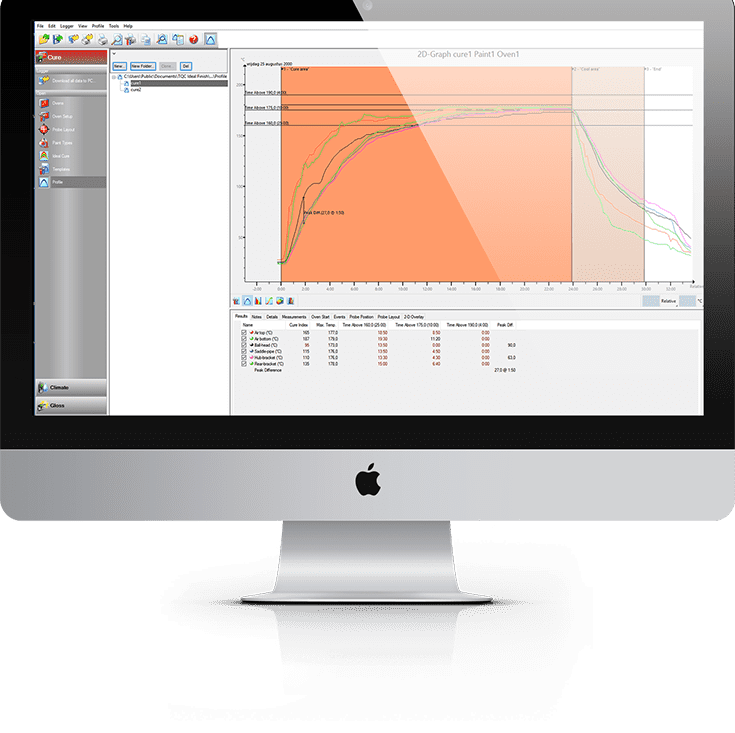

Software Analysis
The Ideal Finish Analysis Software is the most advanced coating climate, coating cure and coating thickness monitoring software package available today. With two user levels Ideal Finish Analysis offers user friendly reporting functions for standard production work as well as advanced calculations for in depth analysis of the climate parameters prior to coating, the curing process and oven performance during coating and the thickness after coating.
Glossmeter – Sologloss & Polygloss
MODEL
SoloGloss 60°
The 60º measuring angle
can be used for any surface,
from matte to glossy.
PolyGloss 20° / 60° / 85°
For better gloss measurements on high gloss surfaces the 20° angle is available, while for low gloss surfaces the 85° angle suits best
[] Measuring materials such as leather and textiles is also a possibility.
[] With a gloss meter you make body repair work measurable.
[] Perception is not only determined by the color. Differences in gloss still gives a different look. Avoid gloss differences and create the most beautiful kitchens!
Customer Service
Free Installation & Training for order amount much than 10,000 THB
DELIVERY SCHEDULE
Differentiate for each goods. Please contact us for information.
1-YEAR OF WARRANTY
For Electric Tester.
| Standards | AS 1580 (602.2), ASTM C584, ASTM D2457, ASTM D523, BS 3900-D5, DIN 67530, ISO 2813, ISO 7668, JIS Z 8741, MFT 30-064 |
|---|---|
| Series | TQC Sheen SoloGloss 60° Sheen Instruments equivalent product code: SH101N, TQC Sheen PolyGloss 20° / 60° / 85° |
