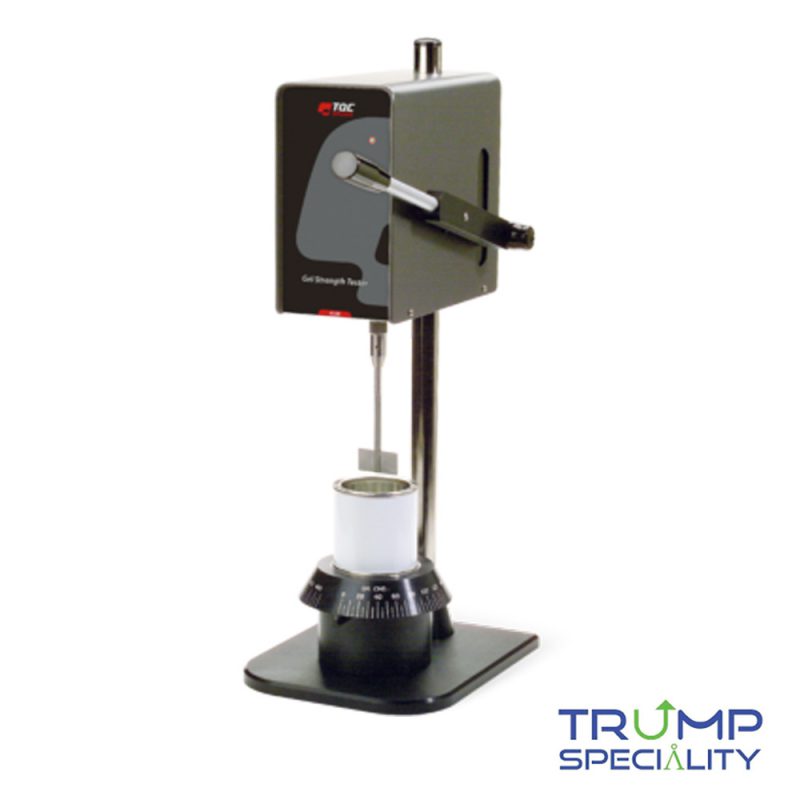

Gel Strength Tester (414N)
PRODUCT DESCRIPTION
The TQC Sheen Gel Strength Tester (414N) is especially suited to assess the yield strength and consistency of thick paints and other materials such as gels and putties etc.
A 250 ml can containing the sample is magnetically fastened onto the turntable of the Gel Strength Tester. This turntable is loaded with a calibrated spring displaying an engraved scale of 0-450 gm/cm.
When immersed into the sample, the flat (4 x 2 cm) paddle spindle rotates automatically at 2 rpm. The paddle spindle drives the whole can and turntable. After a peak reading followed by a short time of stabilisation, a steady torque value is indicated on the Gel Strength Tester’s scale.
Alternative paddle formats are available upon request, allowing for a wider range of viscosity products to be tested.
Documents (EN) : Datasheet
Looking for the other viscosity device.
Constant speed control
Electronic constant speed control over the full range
Simple to install paddle spindle
With a quick release chuck the paddle spindle can easily be installed
Sturdy construction
The sturdy construction allows for use either in lab or production line
Easy to clean
The Gel Strength Tester (414N) can be cleaned easily
Safety height sensor
Safety height sensor preventing the rotor from rotating above the can
Customer Service
Free Installation & Training for order amount much than 10,000 THB
DELIVERY SCHEDULE
Differentiate for each goods. Please contact us for information.
1-YEAR OF WARRANTY
For Electric Tester.
| Standards | – |
|---|
