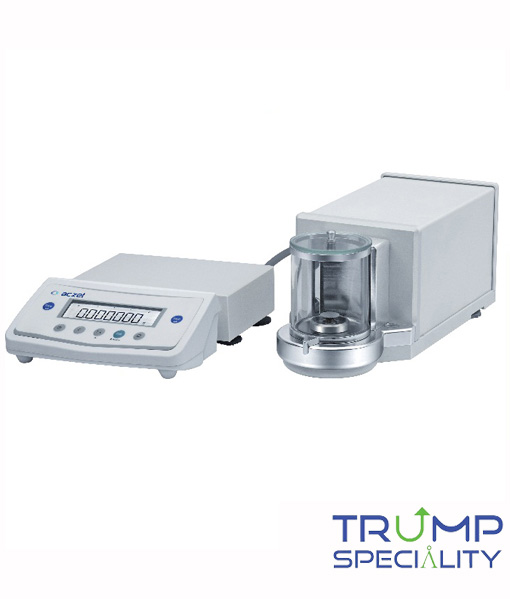

Micro Balances

Our Micro Balances has been designed to meet high requirement for measuring small masses with high readability (d = 1 mg). They are equipped with graphic display/with user menu.

In order to guarantee proper accuracy of measurement, a half automatic system of external calibration with E 1 standard weight has been applied.

Micro balance consist of two balance components. One of them contains electronic modules & other precise mechanical measuring system. Such solution guarantees elimination of temperature changes influencing the indication micro balance.

หมวดหมู่: Aczet, Measuring Instruments

รายละเอียดเพิ่มเติม
บทวิจารณ์ (0)

Micro Balances

Micro balances series CM ore offered with 4 capacity 2gm, 5gm, 11gm & 21gm (with readability 1 mg) balances are equipped with esthetic, cylindrical shaped weighing chamber with glass draft shield. All elements of weighing chamber ore manufacture from glass or metal which minimize the influence of electro-static charges on weighing result. Micro Balance equipped with user friendly menu User has access to multiple functions & measuring units which allow for specification for working requirements. Micro Balances software allows for composition of GLP procedures as standard printout freely definable non-standard printout series.

Balances CM is equipped with RS 232, PS 2 o/p & possibility of connecting additional display as standard.

Standard Features

Specialized Large Backlite Alpha numeric LCD Display with A.E.P. (Advance Eye Protection) New.
Standard RS 232 interface / USB.
Inbuilt system of internal calibration with initial calibration
Auto calibration according to change in ambient temperature.
User selected time calibration
Various application other than just simple.
Weighing like
% Weighig
Filling
Check Weighing
Statistic
Complies to GLP / GMP
Automatic Zero Tracking features (can be turned OFF by menu code).

Technical Specifications

MODEL	CM 2	CM 5	CM 11	CM 19	CM 21	CM 31
CAPACITY	2 gm	5gm	11gm	19gm	21gm	31gm
READABILITY	1 µg	1 µg	1 µg	1 µg	1 µg	1 µg
REPEATABILITY(+/-)	1 µg	1 µg	1 µg	1 µg	1 µg	1 µg
LINEARITY(+/-)	3 µg	4 µg	6 µg	8 µg	10 µg	10 µg
PAN SIZE(mm)	15 / 30Ø
RESPONSE TIME	5-10 sec.
CALIBRATION	Perfect Auto Internal Time & Temp. Controlled Smart Calibration (Self Calibration)
DISPLAY	Backlite Alpha Numeric Display With A.E.P.
SENSITIVITY DRIFT	2ppm (2 x 10-6 / °C)
INTERFACE	RS232 interface / USB
TARE RANGE	Full
OPERATING TEMP.	18°C to 30°C
POWER SUPPLY	A/C Adaptor 230V or 115V +/- 20% 50-60Hz
COMPLINACE	ISO GLP / GMP Compliance
Weighing Chamber	90Ø
NET WT. / GROSS WT.	10.20 kgs / 14.70 kgs
Packing Size	565 x 565 x 355 / 22.2” x 22.2” x 14”
