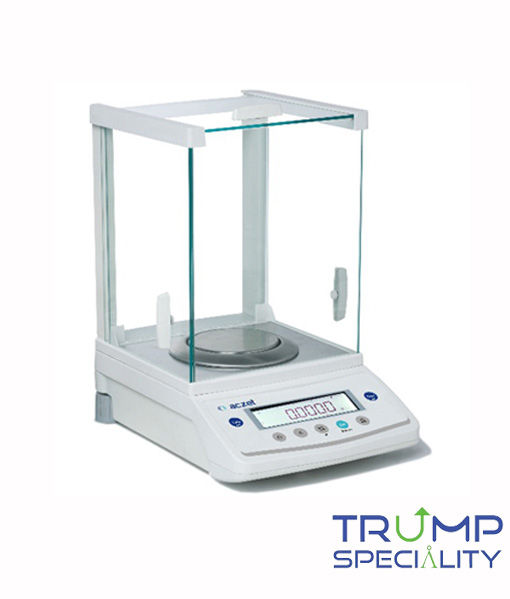

Touch Balance

Technology

All Aczet Analytical Balances are based on Electro magnetic force compensated principal. The compensated principal is superior to conventional systems due to improved dynamic & static performance.

Display

High Contrast Backlit LCD display is exceptionally easy to read under any room lighting conditions.

Calibration

This Balances are supplied with standard Calibration mass for the Internal / External Calibration.

หมวดหมู่: Aczet, Measuring Instruments

คำอธิบาย
บทวิจารณ์ (0)

Touch Balance

Convenience

This Balances are equip with Large Draftshield Chambers which gives more space to user.

RS 232C / USB

Standard RS 232C data interface or USB makes communication with PC / Printer easier.

Statistical Calculation Function

Standard inbuilt statistical calculation function helps user to maintain to data.

Flexibility

User can weigh various weighing units like mg, g, ct, oz, dwt, Iola, mommes, baht, grain, mesghal, ort, Hong Kong Taels, Singapore Taels, Taiwan Taels. This extends flexibility to the user.

Ideal for Assaying, Hallmarking Centre & Touch.

Technical Specification

Model	CY 265C	CY 324C	CY 224C	CY 124C	CY 64C	CY 224	CY 124	CY 64	CY 54
CAPACITY	60/210 gm	320 gm	220 gm	120 gm	60 gm	220 gm	120 gm	60 gm	50 gm
READABILITY	0.01/0.1 mg	0.1 mg	0.1 mg	0.1 mg	0.1 mg	0.1 mg	0.1 mg	0.1 mg	0.1 mg
REPEATABILITY	0.02/0.1mg	0.1 mg	0.1 mg	0.1 mg	0.1 mg	0.1 mg	0.1 mg	0.1 mg	0.1 mg
LINEARITY (+)	0.04/0.2mg	0.2mg	0.2mg	0.2mg	0.2mg	0.2mg	0.2mg	0.2mg	0.2mg
CALIBRATION	Internal					External
PAN SIZE (mm)	90Ø
RESPONSE TIME	2 – 3 sec
