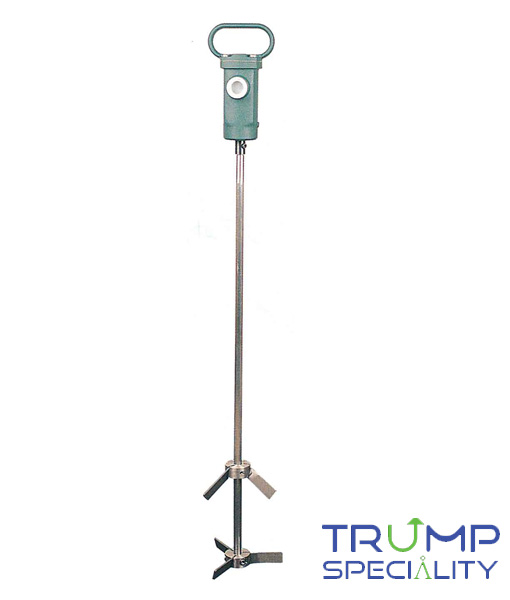

QSJ-0.5 Hand-held Pneumatic Agitator

Main Technical Parameters:

1. Diameter of blade: Ф150mm
2. Power: ≥0.5kw
3. No-load revolution: ≤1800r/min
4. No-load air consumption: ≤22 L/S
5. Applied air pressure: 0.63Mpa
6. Inner diameter of air pipe: 13mm
7. Weight: 4kg

Usage:

Insert an air pipe into a mouthpiece of agitator, put air through and use the machine.

Note:

1.Maintain applied air pressure at 0.63 Mpa and purify air. If air pressure is too high, it will intensify wear and influence the life of a machine. If air pressure is too low, it will reduce efficiency.
2.Packed filter、relief valve and oil atomizer should be installed on the air circuit. When having no three instruments, lubricant should be filled from air inlet every 2-3 hours. 20# Lubricant should be used in summer, 10# Lubricant should be used in winter.
3.Before connecting the machine to air circuit, air circuit should be turned on first so as to discharge dirty stuff in the air circuit.
4.The machine should be taken care during working, not put at random so as to damage spare parts.
